Hand Woven Mesh

Our steel wire mesh is the future of enclosure
materials.

While it can easily fill the role of traditional fencing material, it also allows architects and designers to incorporate the mesh as an integral structural element in its own right, by using the tensile strength of the material to support loads.

The mesh is hand spliced from stainless steel wire 304, and is offered in silver or black oxide finish.



TECHNICAL SPECIFICATIONS

Item name:
Stainless Steel mesh AISI 304 or 316

Description:
Steel mesh for fencing of enclosures

Hand Woven Steel Mesh - Black Oxide

Hand Wowen Steel Mesh - Regular

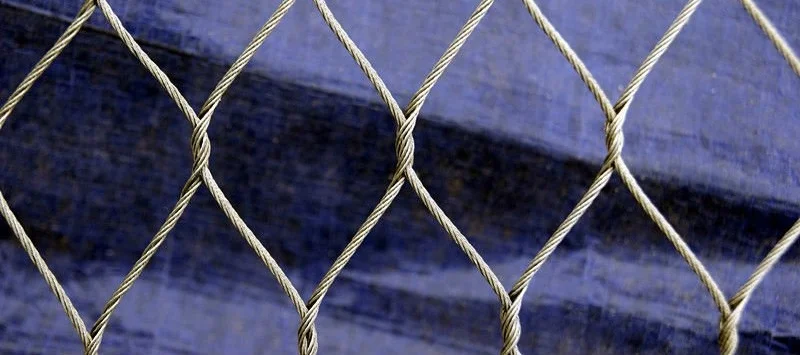

The flexible stainless steel cable mesh material is used high quality stainless steel wire cable.

 The stainless steel grade includes

  • type 304
  • type 304 L
  • type 316
  • type 316L

The structures of the stainless steel wire cable have 7 x 7 and 7 x 19. All the material for producing stainless steel cable netting is imported form South Korea and Japan.

The standard stainless steel wire cable diameter includes

  • 1/8"
  • 3/32"
  • 1/16"
  • 3/64"

The standard mesh opening size includes

  • 1" x 1",
  • 1-1/2" x 1-1/2",
  • 2" x 2"
  • 3" x 3"
  • 4" x 4"

The flexible stainless steel cable mesh is rhombus mesh, has excellent flexible performance, virtually indestructible, most impacting-resistant and breaking resistant force, most resisting rain, snow, hurricane.

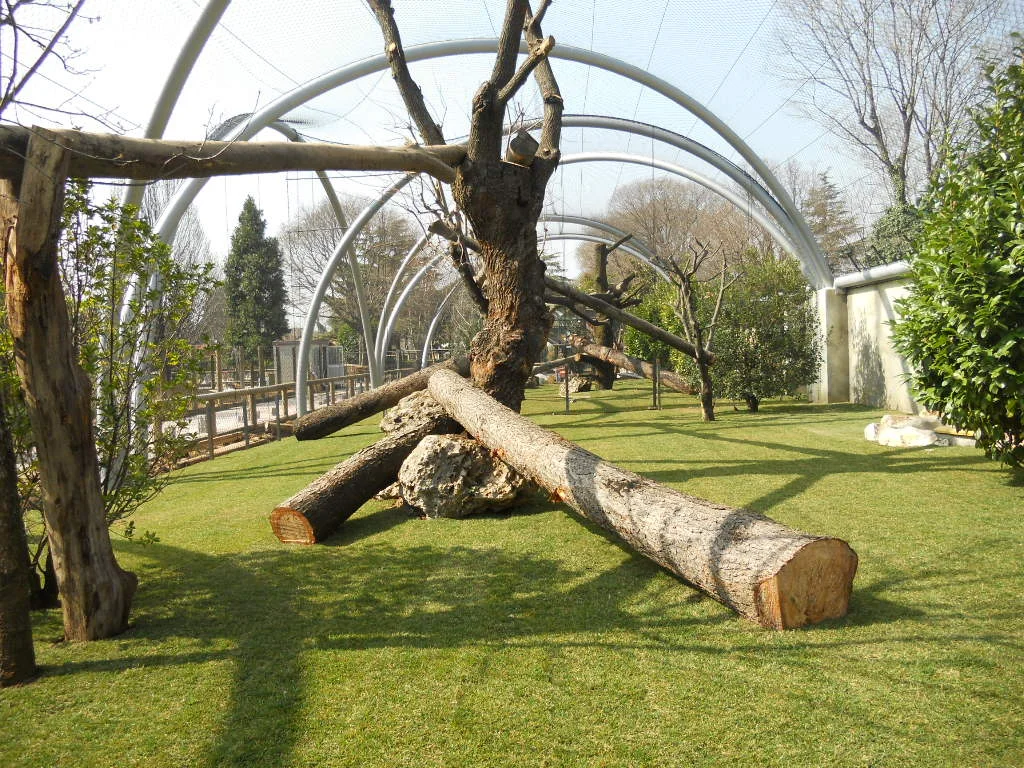

As the material is virtually indestructible stainless steel, then it can be safely contain any species on land, in the air indoors or out. And the weave opening, we can infinitely customizable to meet your exhibits exact specifications.

No matter how large, how small, or how cunning you specimens are, we assure their complete security.


We invite you to consider stainless cable mesh as a material to be incorporated in you design scheme. Contact us here >>



technical specifications



See our next fencing solution here >> or contact us right here >>
